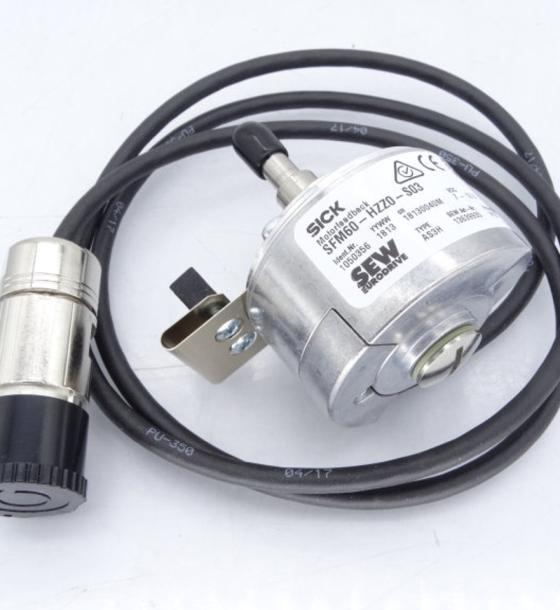

The SFM60-HZZ0-S03 is an absolute multiturn rotary encoder manufactured by SICK, designed for high-precision position and speed feedback in industrial automation systems. It uses the HIPERFACE® interface, offering high-resolution data for demanding motion control applications.

Key Specifications

• Encoder Type: Absolute multiturn rotary encoder

• Interface: HIPERFACE®

• Resolution: 32,768 steps per revolution (15-bit)

• Multiturn Range: Up to 4,096 revolutions

• Power Supply: 7–12 V DC

• Current Consumption: 80 mA

• Shaft Type: Solid shaft, 6 mm diameter

• Connection: 1.5-meter radial cable with 8 wires

• Protection Class: IP65

• Mounting Type: Flange mount

• Operating Temperature: -30°C to +85°C

Typical Applications

The SFM60-HZZ0-S03 is commonly used in:

• Servo motor feedback systems

• Elevator positioning and speed control

• Robotics and CNC machinery

• Industrial automation requiring accurate motion tracking
