HEIDENHAIN ERN 1381, ERN 1387, EQN 1325, ROD (38 MM) (MOUNTING BRACKET)
HEIDENHAIN ERN 1381, ERN 1387, EQN 1325, ROD (38 MM) (MOUNTING BRACKET)

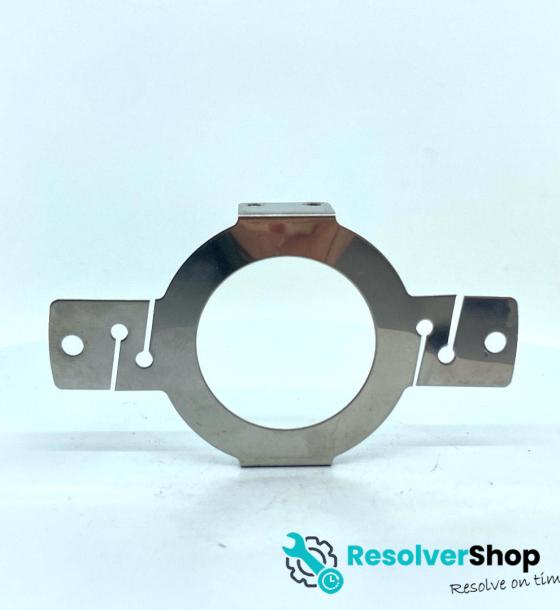

Mounting bracket for Heidenhain ERN 1381, ERN 1387, EQN 1325, ROD types

Dimensions:

Lenght - 100 MM
Width - 56 MM
Height - 15 MM
Inner diameter - 38 MM

Compatible mounting brackets with identical outer dimensions and overall shape:

  • HEIDENHAIN ERN 1381, ERN 1387, EQN 1325, ROD (20 MM) (MOUNTING BRACKET)

These two mounting brackets are nearly identical and will likely fit the same encoder series. The main difference is the inner diameter, which may vary between the two versions. For this reason, we kindly recommend checking the inner diameter and mounting dimensions carefully to ensure compatibility with your encoder before purchase.
