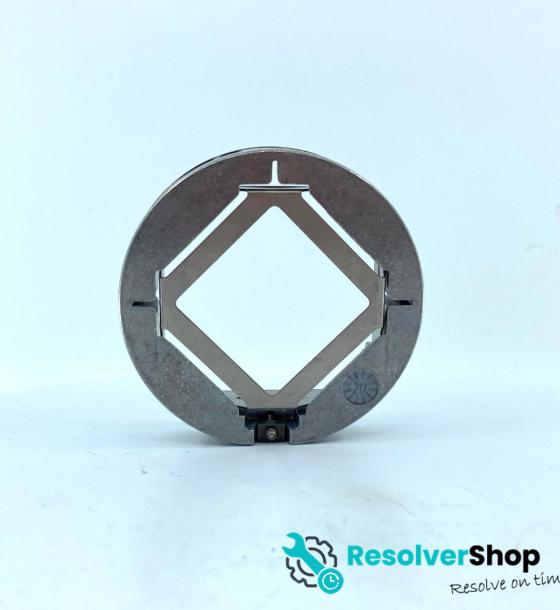

Mounting bracket for Heidenhain ECN 1300, EQN 1300, ERN 1300 types

Dimensions:

Outer diameter - 65 MM
Height - 15 MM
Inner diameter - 47 MM


Compatible mounting brackets with identical dimensions and shape:

• Heidenhain 312 516 01 mounting bracket
• Heidenhain 387482-01 mounting bracket

The only difference between these brackets is the type number stamped on the product. All other dimensions and fitting are identical.
